ELM327 OBDII Code Reader Cloud Print Car Diagnostic Scan Tool Automotive ODB2 Voltage Tester OBD 2 Scanner Auto Tools PK

Parameter:

Operating voltage: 9V~16V

Working current: 36~54mA

Operating environment: -30 ~ 70℃

Storage temperature: -30 ~ 70℃

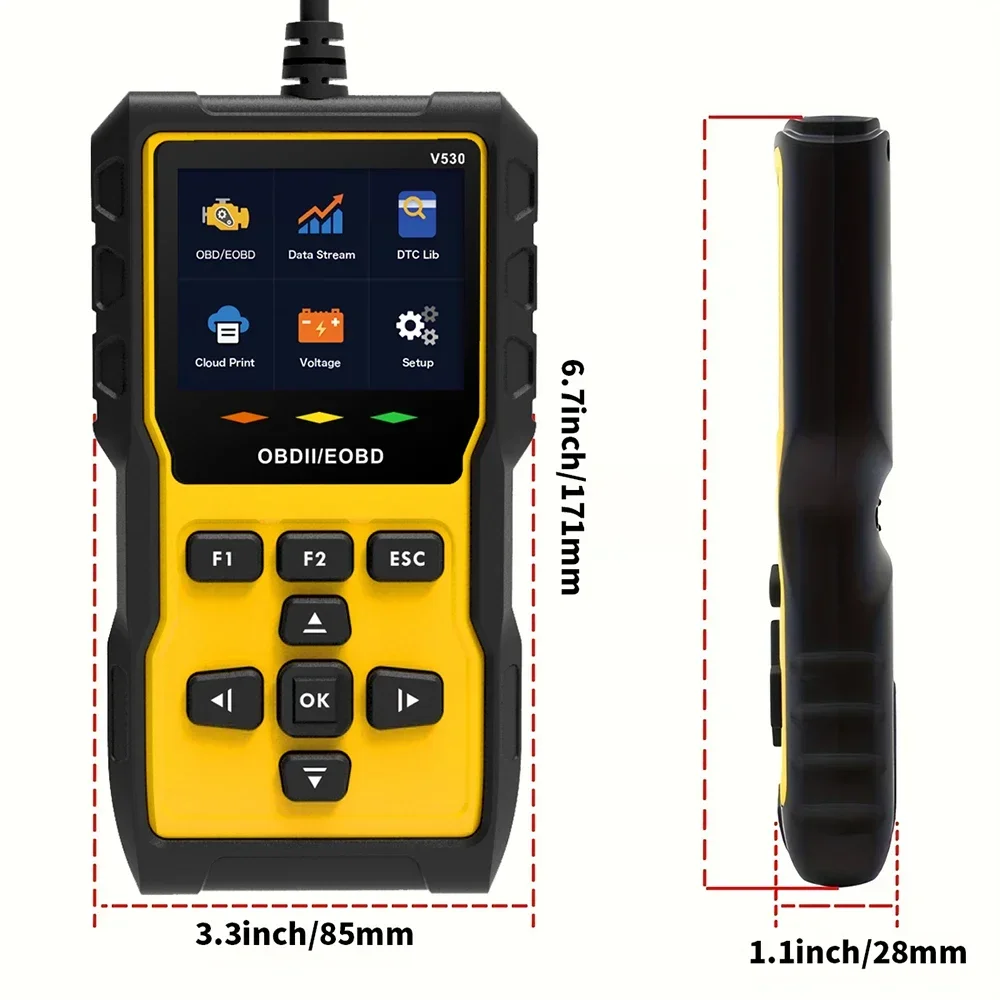

Overall dimensions: 171*85*28mm

Main Functions:

Support nine OBD II/EOBD standard protocols

Read the automobile engine fault code

Clear engine fault code

Vehicle fault freeze frame

I/M ready state

Vehicle information

Automobile data flow

Battery voltage reading

Mode 6 detection

Oxygen sensor test

Mode 8 detection

Fault code query

Cloud Print

Support ten languages: English, German, French, Spanish, Italian

Russian, Dutch, Chinese, Japanese, Portuguese

Support Agreements:

SAE J1850 PWM (41.6Kbaud)

SAE J1850 VPW (10.4Kbaud)

ISO 9141-2(5 baud init, 10.4Kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (fast init, 10.4 Kbaud)

ISO 15765-4 CAN (11bit ID, 500 Kbaud)

ISO 15765-4 CAN (29bit ID, 500 Kbaud)

ISO 15765-4 CAN (11bit ID, 250 Kbaud)

ISO 15765-4 CAN (29bit ID, 250 Kbaud)
