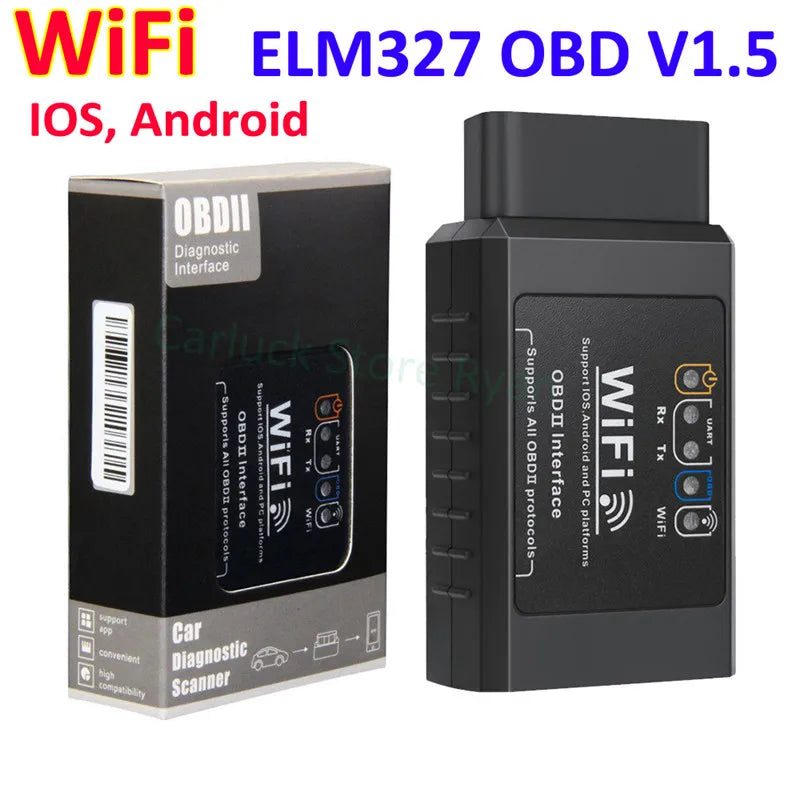

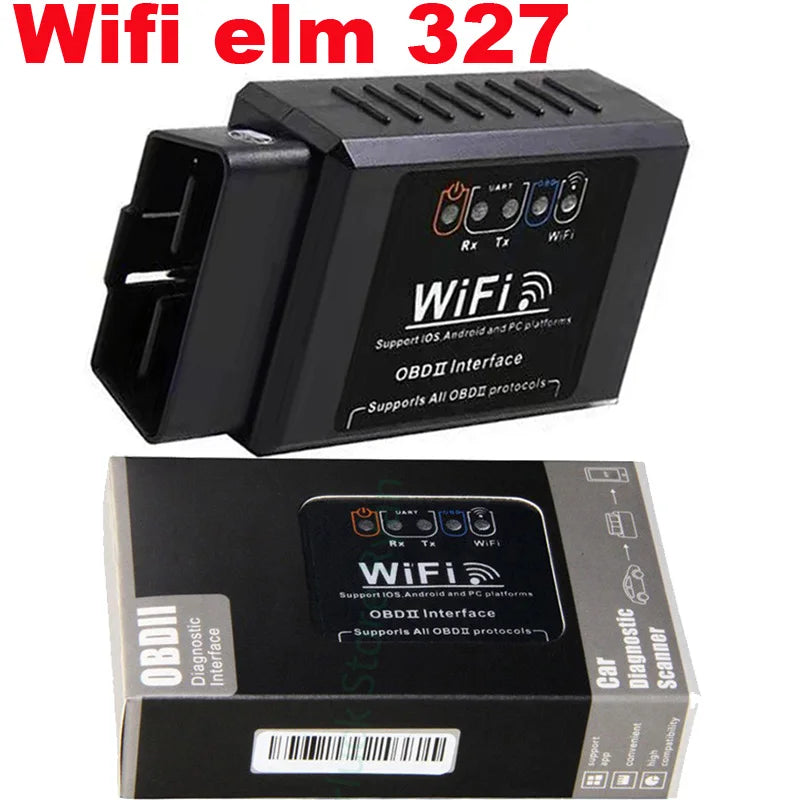

New ELM 327 V1.5 WIFI OBD2 WIFI Scanner Auto ODB2 ELM327 V1.5 WIFI For Android/IOS OBD 2 OBD2 Car Diagnostic Auto Tool

New ELM 327 V1.5 WIFI OBD2 WIFI Scanner Auto ODB2 ELM327 V1.5 WIFI

For Android/IOS OBD 2 OBD2 Car Diagnostic Auto Tool

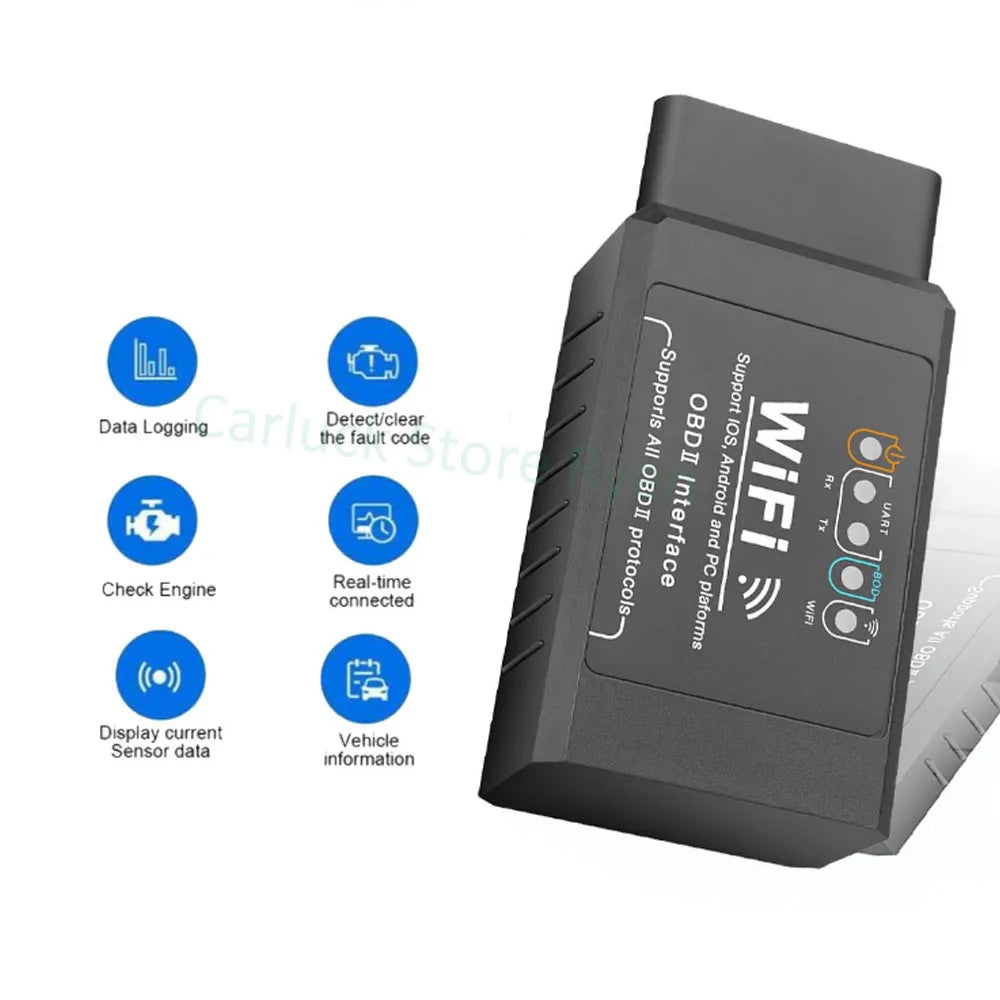

Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi.

Top 5 Reasons To Get Mini OBD2 Wifi Scanner:

1. Software Version: Latest Version

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (WIFI)

5. Support Four operating platforms (IOS, Android, Symbian, Windows)

Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Wifi Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ("Check Engine" light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

Mini OBD2 Wifi Scanner Specifications:

SSID: WiFi_OBDII

IP: 192.168.0.10

Port: 35000

Communication: WIFI

Master Chip: Without PIC18F25K80

Support System: IOS, Android, Symbian, Windows

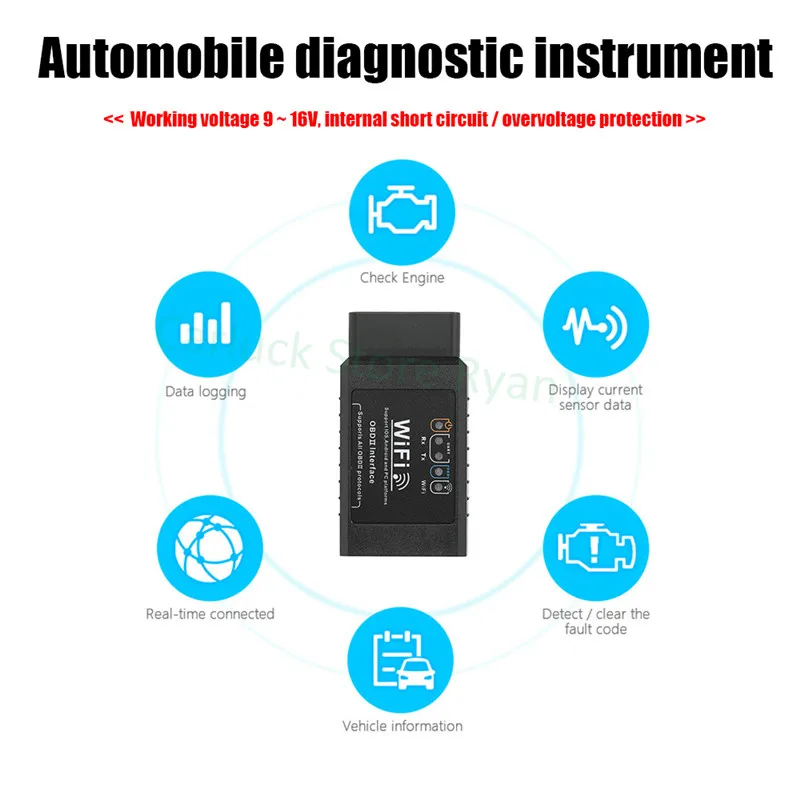

Working Voltage: 9v ~ 16v

Working Current: 65mA

Standby Current: 45mA

Operating temperature: -40 ℃ ~ 85 ℃

Working Humidity: less than 60%

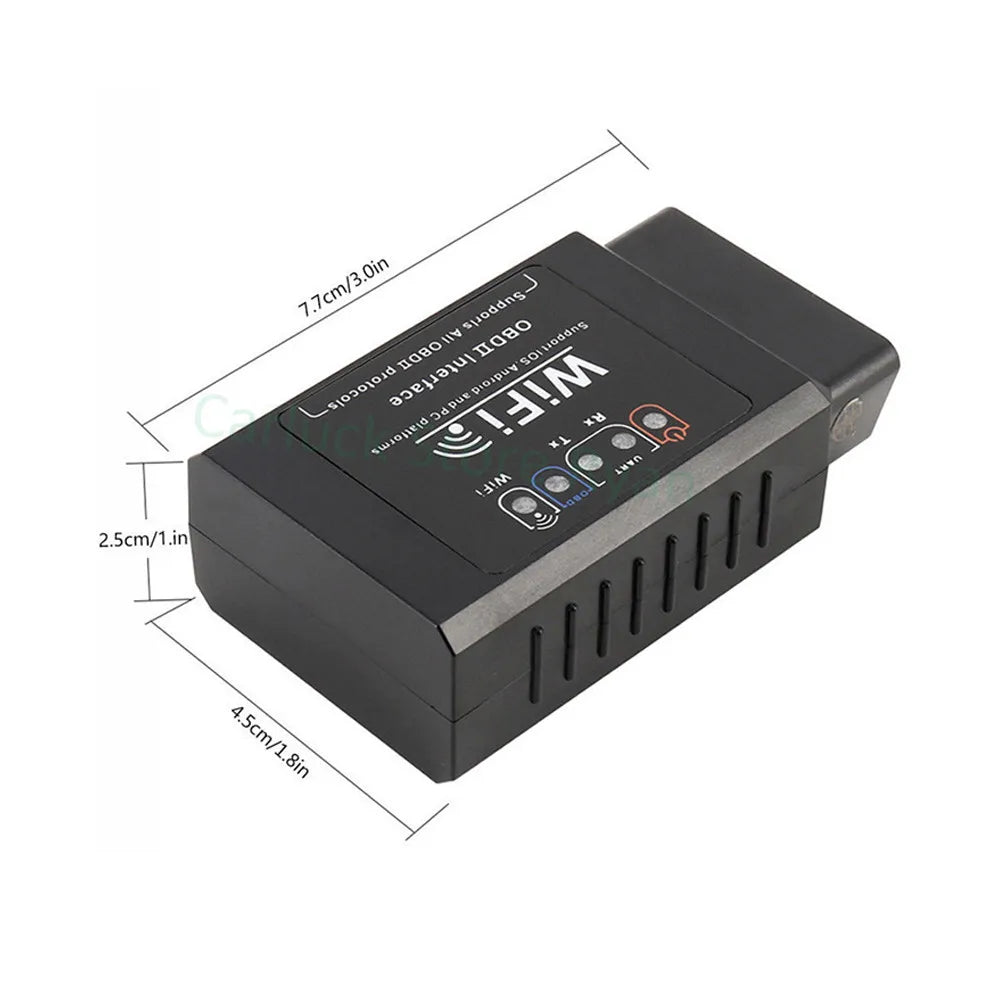

Size: 43mm * 25mm * 30mm

Compatible systems:

Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.

Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

IOS: Auto Doctor, Mini OBDII

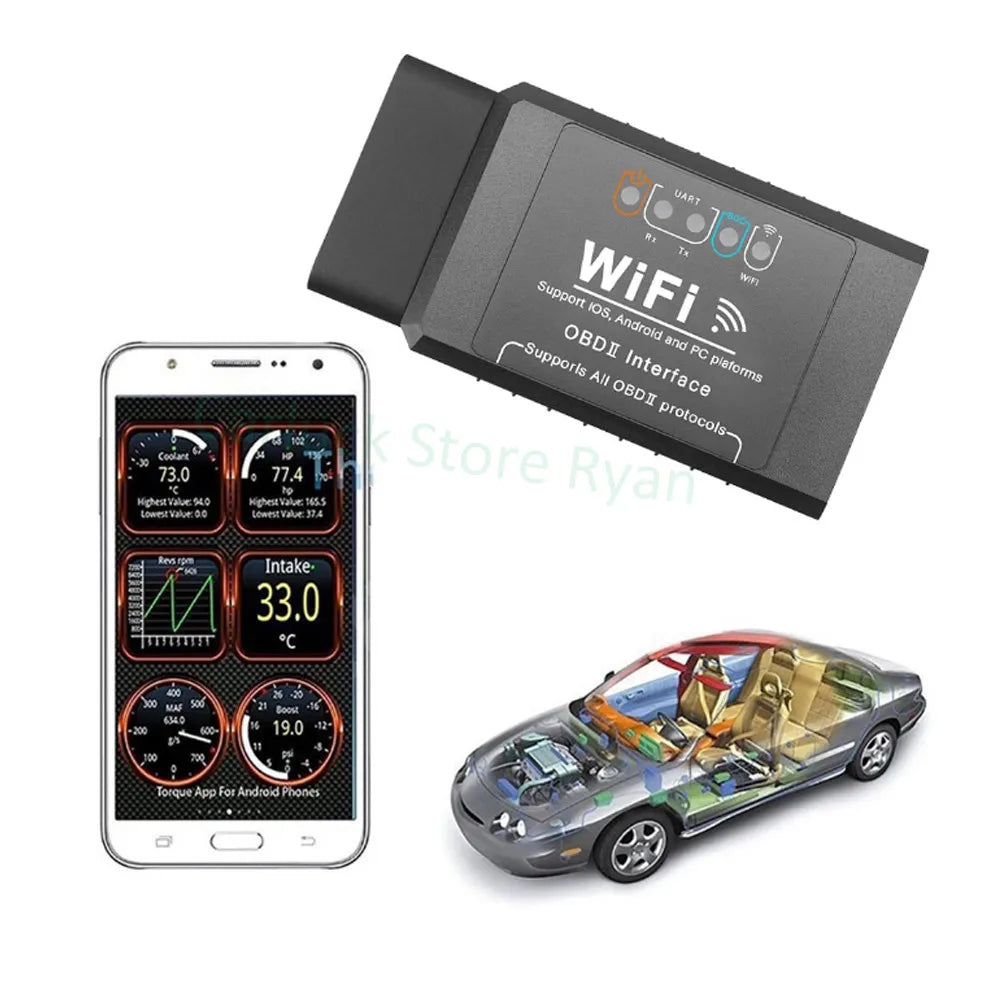

Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

Symbian: OBDScope

• This one can't support for Diesel or Trucks.
